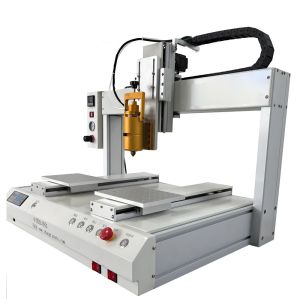

Desktop Automatic Screw Tightening Machine / Auto-Screwdriving Machine for PCB Keyboard
- Model
- MX-ZTLSJ041
Item specifics
- Dimensions：
- 1000*750*850mm
- Screw Feeding:
- Pick and Place,Magnetic
- Voltage:
- 110~230V 50~60Hz
- Weight (KG):
- 80KG
- Core Components：
- PLC
- Repeate Accuracy：
- ±0.02mm
- Power:
- 800W
- Screw Size:
- M0.8~M5
- Name
- Screw Locking Robot
- Adjustable Torque Range：
- 0.5~20Nm
Review
Description
Desktop Automatic Screw Tightening Machine / Auto-Screwdriving Machine for PCB Keyboard
Introduction features:
1. Desktop/floor-standing cymbal machines can be placed on the production line.
2. Select the purpose of the all-English mark, which is applicable internationally.
3. Double Y-axis type, automatically alternate working, saving time on placing workpieces.
4. Complete welding procedures, with alarm function for tooth slipping and cymbal falling, and can count.
5. Parameters such as torque, locking time, moving speed time, and post-compensation can be set.
6. It is divided into two feeding methods: blowing type/top type. The feeder and nozzle are customized according to the screw specifications.
7. Provide Chinese operating instructions and training.
|
Model
|
MX-LSJ041
|
MX-LSJ0441-01T
|
MX-LSJ0441-02T
|
MX-LSJ4411-BKB | Fixture Customization |
|
Screw Feeding
|
Pick and Place,Magnetic
|
Need | |||
|
Working Air Pressure
|
0.4~0.6MPA
|
Editorial Model
|
Manual/Automatic | ||
|
Adjustable Torque Range
|
0.8-20Nm
|
Locking screw time
|
1~1.5sec/pc | ||
Machine Axis Number | 3 axis | 4 axis | 4 axis | 4 axis | Max moving speed |
X Axis | 400mm | 400mm | 400mm | 400mm/2X
| 600mm/s |
Y Axis | 300mm | 300mm/2Y | 300mm/2Y | 300mm/2Y | 600mm/s |
Z Axis | 100mm | 100mm | 100mm | 100mm | 400mm/s |
Control Mode | Microcontroller+Touch Panel | ||||
Teaching File Capacity | 256MB, Up to 999 files, single file up to 1000 points | ||||
Weight(Kg) | 50Kg | 65Kg | 65Kg | 85Kg | Customized |
Size(mm) | 600*750*850 | 800*750*850 | 850*750*850 | 1000*750*850 | To order |
